Flagship Product
V Bar Busway System
A safe, economical and highly reliable modular unipolar power transmission system ranging from 150A to 5000A. Designed to outperform conventional cables and traditional bus ducts.

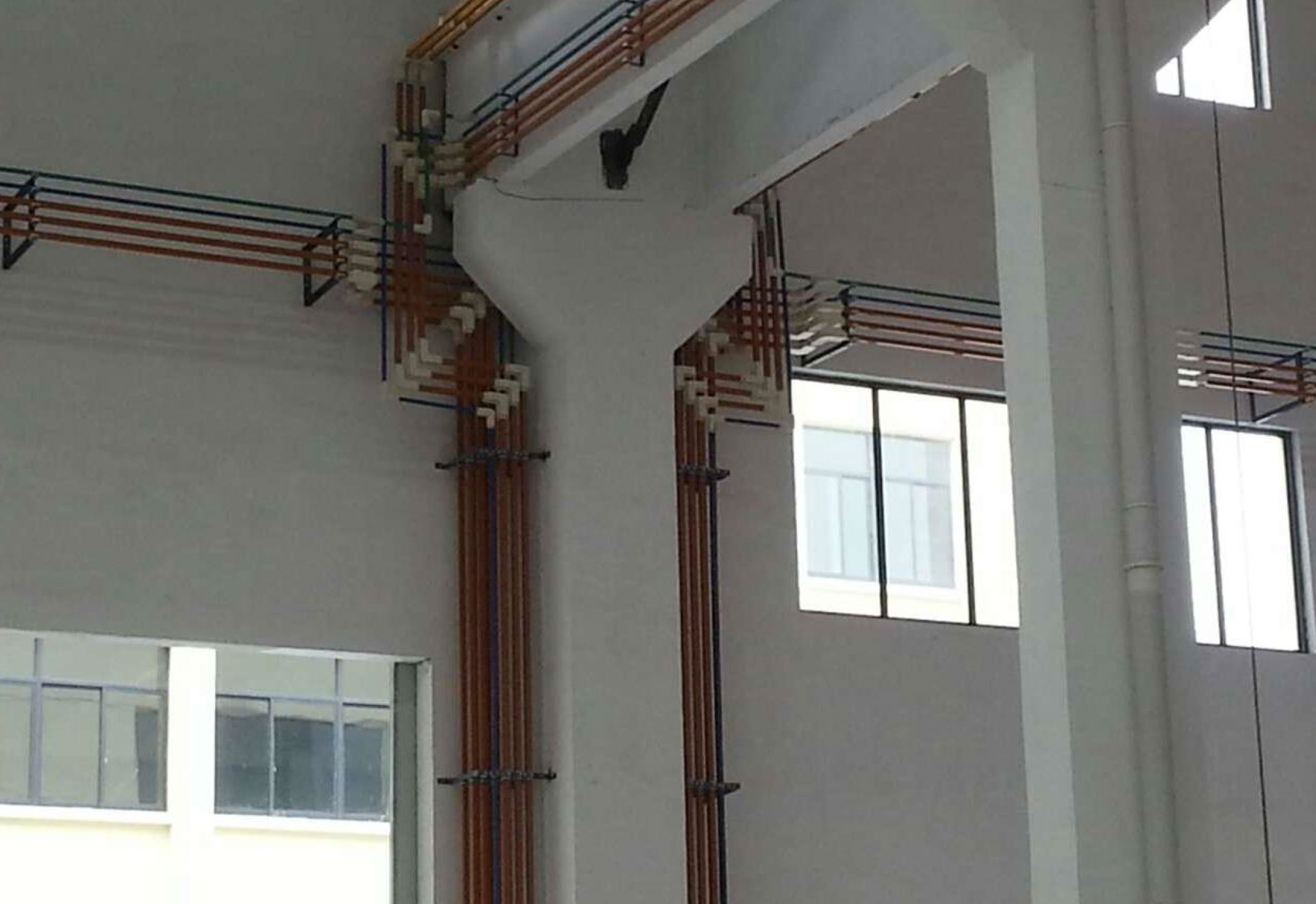

Product Overview
The Next Evolution in Power Busway Systems
V-Bar Power Busway is a safe, and highly reliable power distribution system designed to outperform conventional cables, traditional busbars and sandwich busducts.
Built with a closed structural design and advanced airflow engineering, V-Bar offers efficient heat dissipation, compact design, flexible configuration as per site conditions, superior safety performance, freedom for on-site modifications during installation, faster installations, self fire extinguishing properties and long operational life.
150A – 5000A Range
Modular Design
Fire Safety
System Components
Modular. Adaptable. Complete.
Every V-Bar system is built from precision-engineered components designed to work
together seamlessly for maximum reliability and ease of installation.

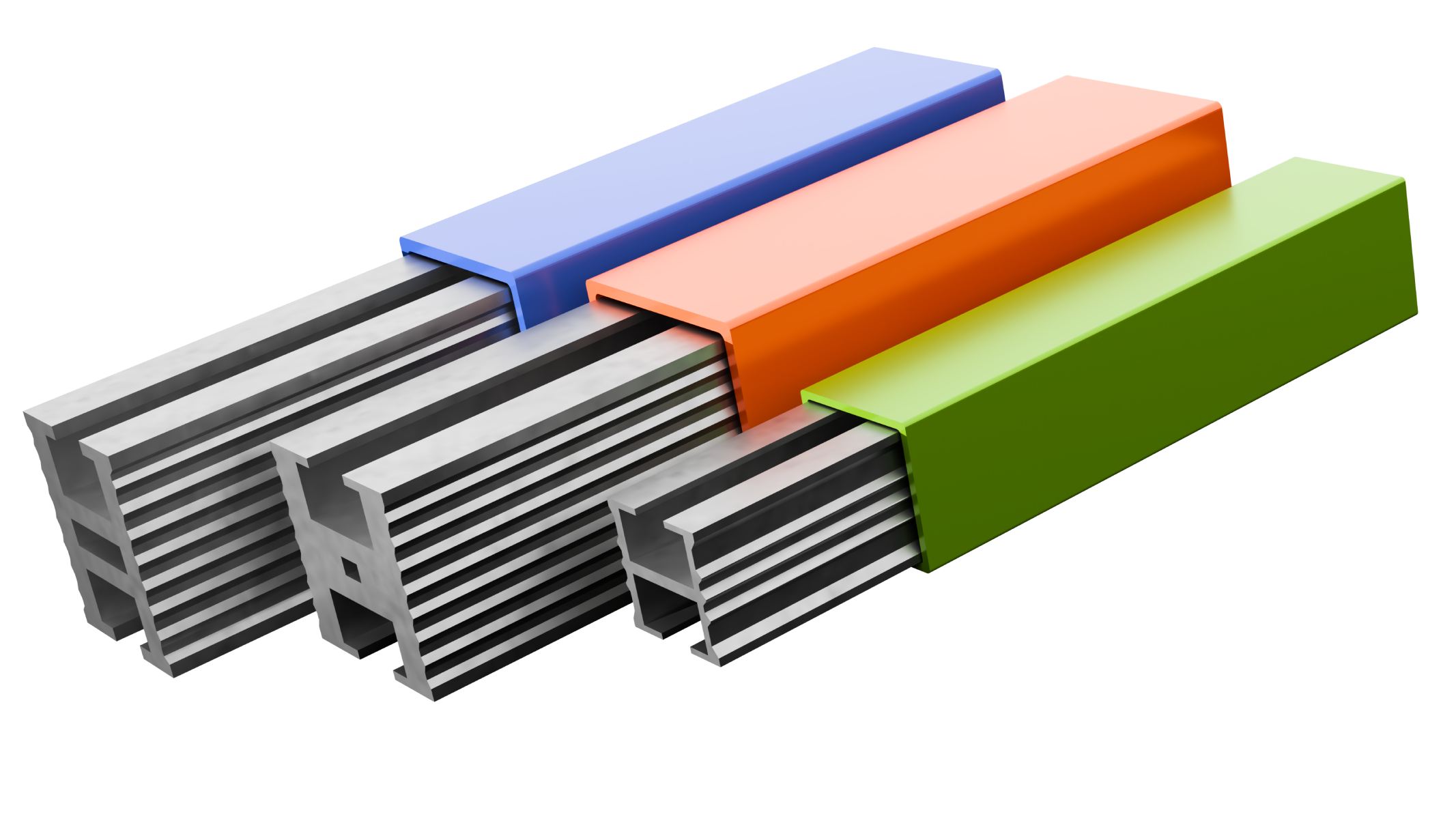

Straight Busbar
T Joint Busbar Link
Straight Busbar Link
90° Busbar Link
Elbow Cover
Busbar Clam
Joint Cover
Straight Busbar
T Joint Busbar Link
Straight Busbar Link
90° Busbar Link
Elbow Cover
Busbar Clam
Joint Cover
Specifications
Product Models & Ratings
Model
Current Rating
Weight / Meter
Dimensions / Phase
VB150A
150 Amp
0.28 Kg
28 mm x 28 mm
VB200A
200 Amp
0.28 Kg
28 mm x 28 mm
VB250A
250 Amp
0.500 Kg
28 mm x 28 mm
VB300A
300 Amp
0.550 Kg
36 mm x 36 mm
VB320A
320 Amp
0.575 Kg
37 mm x 37 mm
VB400A
400 Amp
0.730 Kg
37 mm x 37 mm
VB500A
500 Amp
0.900 Kg
37 mm x 37 mm
VB630A
630 Amp
1.2 Kg
37 mm x 37 mm
VB630A
630 Amp
1.4 Kg
37 mm x 37 mm
VB800A
800 Amp
1.5 Kg
37 mm x 37 mm
VB900A
900 Amp
1.7 Kg
37 mm x 37 mm
VB1000A
1000 Amp
1.8 Kg
58 mm x 58 mm
VB1000A
1000 Amp
1.8 Kg
37 mm x 37 mm
VB1250A
1250 Amp
2.2 Kg
58 mm x 58 mm
VB1600A
1600 Amp
2.85 Kg
58 mm x 58 mm
VB2000A
2000 Amp
3.5 Kg
58 mm x 58 mm
VB2500A
2500 Amp
4.5 Kg
58 mm x 58 mm
VB2500A
2500 Amp
4 Kg
58 mm x 58 mm
VB2500A
2500 Amp
5.4 Kg
80 mm x 80 mm
VB3000A
3000 Amp
5.8 Kg
80 mm x 80 mm
VB3200A
3200 Amp
6.3 Kg
80 mm x 80 mm
VB3500A
3500 Amp
6.6 Kg
80 mm x 80 mm
VB3700A
3700 Amp
7.3 Kg
80 mm x 80 mm
VB4000A
4000 Amp
8.2 Kg
80 mm x 80 mm
VB4500A
4500 Amp
8.2 Kg
80 mm x 80 mm
VB5000A
5000 Amp
9.0 Kg
80 mm x 80 mm
Features
What Makes V-Bar Superior
Zero Short Circuit
Each phase is separate, eliminating any chance of short circuit - even during water exposure
Self Fire Extinguishing
Self-extinguishing insulation properties with superior heat dissipation
Compact & Modular
Flexible unipolar configuration for compact construction and easy assembly
Easy Installation
75% lighter than sandwich bus ducts - lift and install each phase individually
150A to 5000A
Wide current range from 150A to 5000A for any industrial application
Low Voltage Drop
Optimized conductor design for minimal power loss and efficient transmission

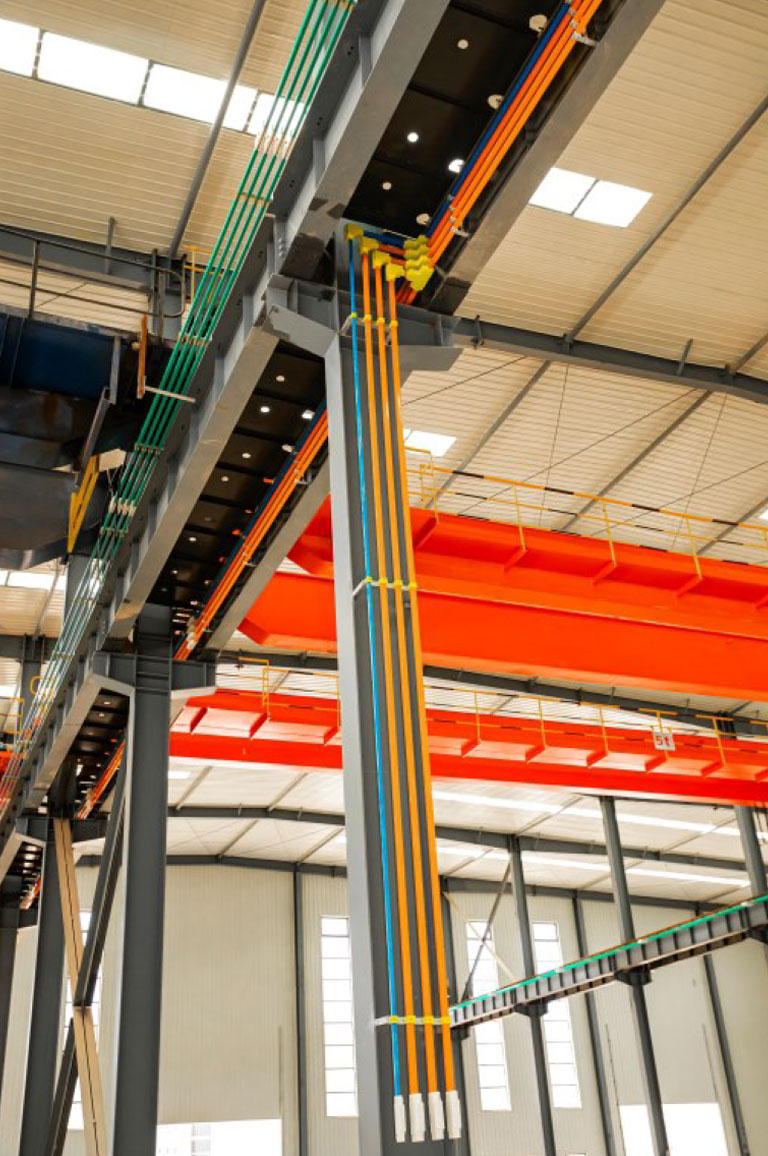

Our Flagship Product
V Bar Power Busway System
A safe, economical and highly reliable power transmission system designed to
outperform conventional cables and traditional busbars.
A safe, economical and highly reliable power transmission system designed to outperform conventional cables and traditional busbars.
Key Specifications
Current Range
150A – 5000A
Construction
Modular Unipolar
Material
Aluminum Busbar
Insulation
Self-Extinguishing
- Efficient heat dissipation with closed structural design
- High temperature resistance & long operational life
- Compact modular construction with flexible configuration
- Zero chance of short circuit — each phase is separate
